2015-2017 Ford Mustang GT PBH Gen 2 6R80 Control Pack Automatic Transmission Power by the Hour

Our Gen 2 6R80 Control Pack is made specifically for 15-17 Coyote swap applications and is available for either the Mustang or F-150 engine firing order configuration. The PBH Gen 2 control pack kit was designed to help put the 6R80 6-speed automatic transmission behind any 2015-2017 Coyote engine swapped build. Using a factory PCM with a custom flash we can control both engine and transmission in one module, no need for any secondary controllers that might have some limitations.

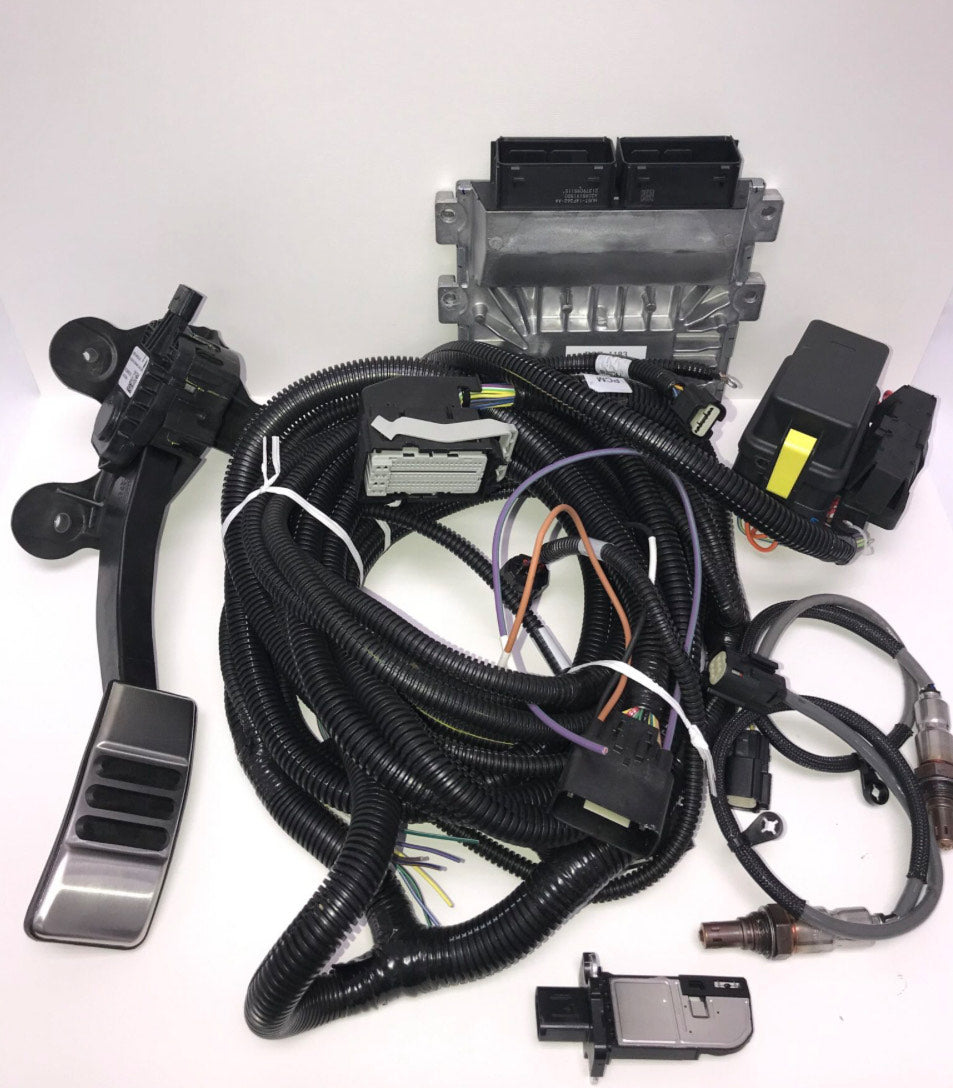

In this pack you will receive the PCM, PBH 6R80 body harness, both O2 sensors, gas pedal, fuse box, mass air meter, and detailed instructions.

The PBH 6R80 body harness will give installers and builders the ability to not only use the 6R80, but to use it to full factory potential. We also left wiring leads for anyone who would like to add select shift buttons,  electric steering, and oil pressure sender. You also get trigger wires for fuel pump and cooling fans so the factory computer can control them as well. The fuse block is detachable to make wiring installation easier.

The PCM supplied in the kit is an Auto GT Mustang unit. This allows us to use the select shift option just like factory. The computer will come with a custom flash and will be configured for either Mustang or F-150 engine firing order to allow start up and custom tuning.

If you’re running the F-150 engine you will need the PBH modified engine harness and they can be found here.
